8/28/2017

How to Program DAF keys with FVDI2, VCI Lite or VCI 560

There are three optional solutions of programming a DAF key using different DAF diagnostic tools/key programmers (FVDI2, VCI Lite (V1), VCI 560), which may help make keys in a cost-effective method.

Option I: Flyobd FVDI2 DAF commander:
It’s the cheapest way to program a DAF key with FVDI2 commander.
How to making a DAF key with FVDI2 DAF?
Note: Before programming keys, all present keys are reset and can be programmed on the same immobilizer only.

Start FVDI2 software for DAF
Select “Key learning”

Press “Next” to go on
Put the key to be programmed into the contact and switch it to position contact-ON
Insert Key 1 and press “Next”

The key is programmed successfully!
Amount of keys programmed: 1
To learn the next key, press “Next”
To fish key learning, press “Exit”

Option II: DAF VCI 560 (genuine): $3550
Option III: VCI Lite (V1) (copy version of VCI-560): $800

First, DAF VCI lite or VCI 560? Here list the differences.
* price
new DAF VCI lite (V1)for $800, original VCI 560 for $3550

* connection
DAF VCI lite used via USB connection, VCI 560 used via WIFI & USB connection

* LED display
VCI lite without LED display, VCI-560 kit with LED indicators

* PCB (hardware)
VCI lite hardware lacks one part on PCB, compared to VCI-560
(that missed part is not needed for any diagnosis, reprogramming, configuration)

* via OBD
VCI lite cannot see ignition via OBD, VCI-560 can do that via OBD

* function
DAF VCI 560 supports SCR/AdBlue removal, power increase, language programming with DAVIE Configurator (DEVIK)
VCI-560 also supports special programming and Service Level see DAVIE Developer Tool (DEVIE DT)
However, functions above are not listed in the DAF VCI lite package; that is, you need to buy in the DAF company.

In short, no matter VCI 560 or the replacement VCI Lite (V1), both work well on DAF trucks almost the same except some aspects above. If you do not care about original or not, VCI Lite should be a good choice for you, which almost has the same functions as VCI-560 but at a lower cost. DAF VCI Lite (V1) is more cost-effective.


So, how to program a DAF key using VCI 560 or VCI Lite (V1)?
Start DAVIE software
Go to Immobilizer (safety/security system)

Then programming

Program keys

before programming keys, all present keys are reset and can be programmed again in the same immobilizer only


Match immobilizer
Before installing a new immobilizer unit, perform the following actions:
1- switch off contact
2- exchange the immobilizer unit
3- switch on contact


Good luck when program daf keys with FVDI2 or VCI Lite / VCI 560.

8/07/2017

Icarscan diagnostic adapter – a must tool for small automotive repair shop

I am looking for a working cheap diagnostic maintenance tool, which is allowed me to add any car brands / add special functions as my will. So Icarscan diagnostic adapter is such a must tool,  to have any 5 car brands + 3 kinds of special functions, in this personalized customization times, Icarscan does a great job, it is very user-friendly and cost effective.



Details: from outside to inside
Icarscan diagnostic is a smallest Orange Bluetooth adapter without USB cable. It is designed with 16pin communicating with the vehicle’s OBDII port.
2017 New Launch X431 ICARSCAN Full Systems for Android/IOS with 5 Car Software and 3 Special Function Software free Update Online
 Launch X431 ICARSCAN
How to use Icarscan?
Device to prepare: IOS or Android smart phone

Procedure:
Use smart phone to scan the QR code on the back of the package.
Download M-diag APK
Register User and login -> active Icarscan device-> install Icarscan device (see below picture)
2017 New Launch X431 ICARSCAN Full Systems for Android/IOS with 5 Car Software and 3 Special Function Software free Update Online
Click “Vehicle diagnosis” to download car brands (up to 5 BMW, Benz, Audi, Opel, VW) and “Special tools” to download special functions (up to 3 incl. Reset Oil, Injector, reset DPF), besides the “Demo”. As it claims it can cover the generic OBD, CAN bus, and proprietary protocols of over 70 car manufacturers and2, 500 car models), that means it is allowed to buy more car brands if I need them, as for the price, take several brands for example, BMW $49.95, Benz $49.95, Audi $49.95, Opel $39.95, VW $39.95, Chrysler $39.95, Proton $34.95, Chinese Geely $34.95, etc.

Finally, to diagnose and do reset work. I confirm Icarscan could work as it’s described. Generally speaking, after going through the specific brand it can access to the full systems and perform full function diagnosis incl. reading/ clearing trouble codes, data stream, actuation test, adaptation, ECU coding & programming, and special functions.
And after choosing the specific special tool, covers not only one model. (See operating pictures at the last paragraph.)

The running speed going through from one page to another page is reasonable, you need not worry it may running slowly.
A nice feature is its personal settings, click “Mine”, I am allowed to check “My Report”, “My purchase History” and “Change password”.

As for the update, I will be prompted when it detects the newest update, so I do not worry it can’t update any longer.

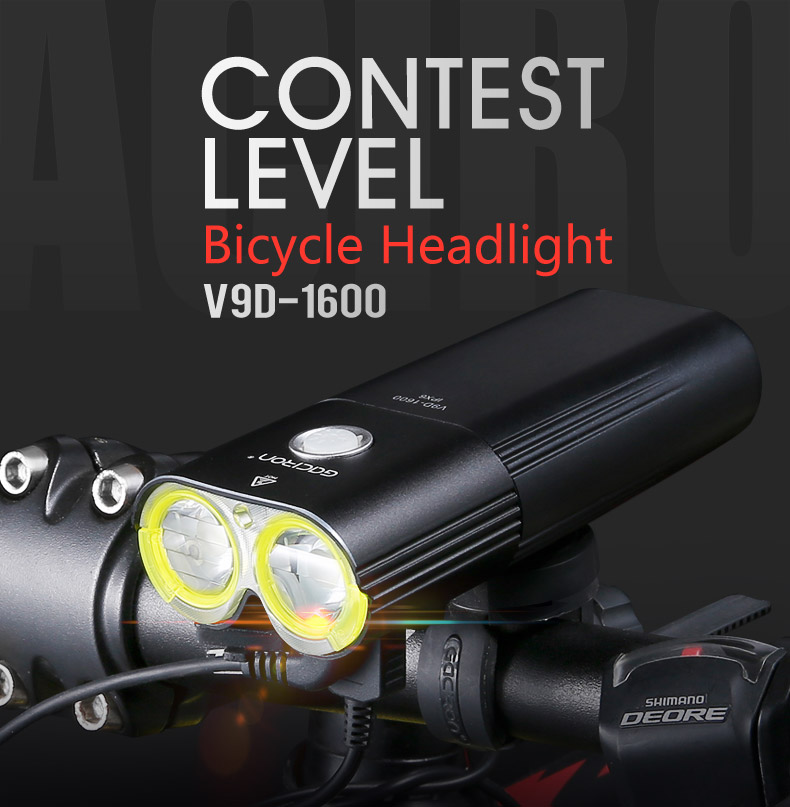

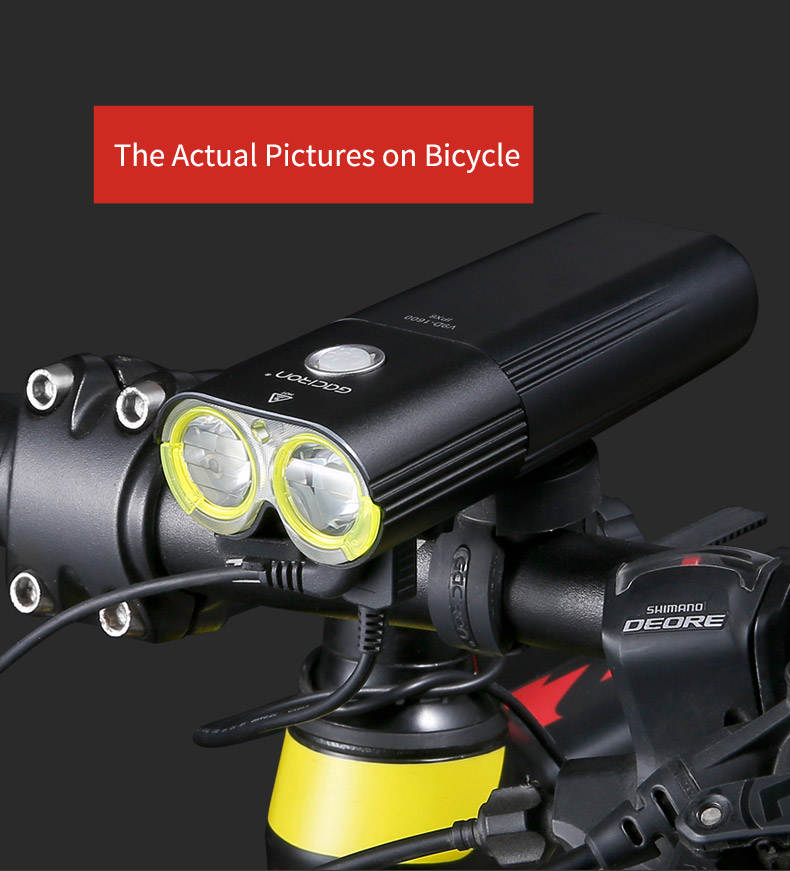

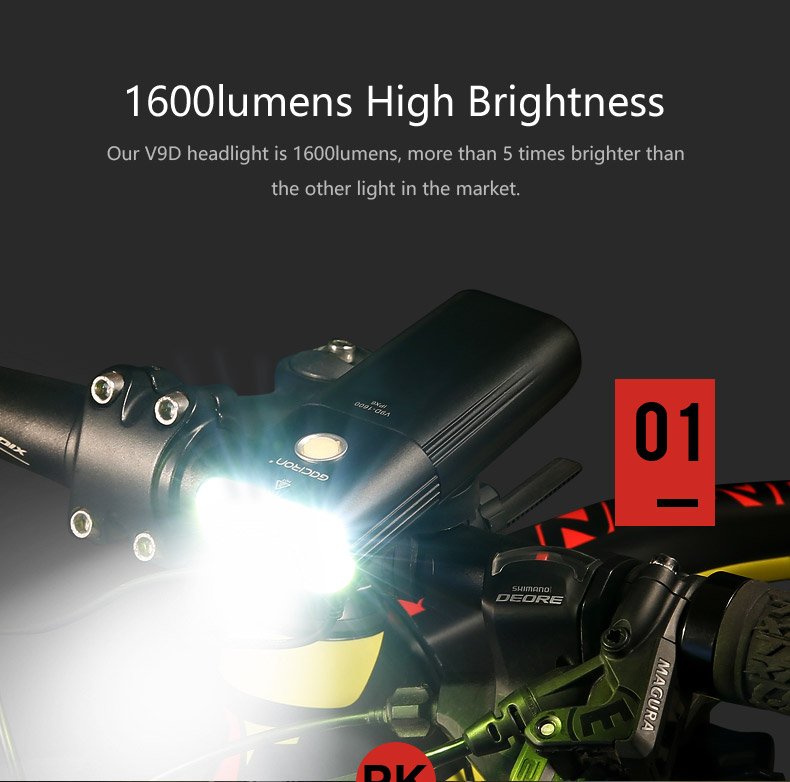

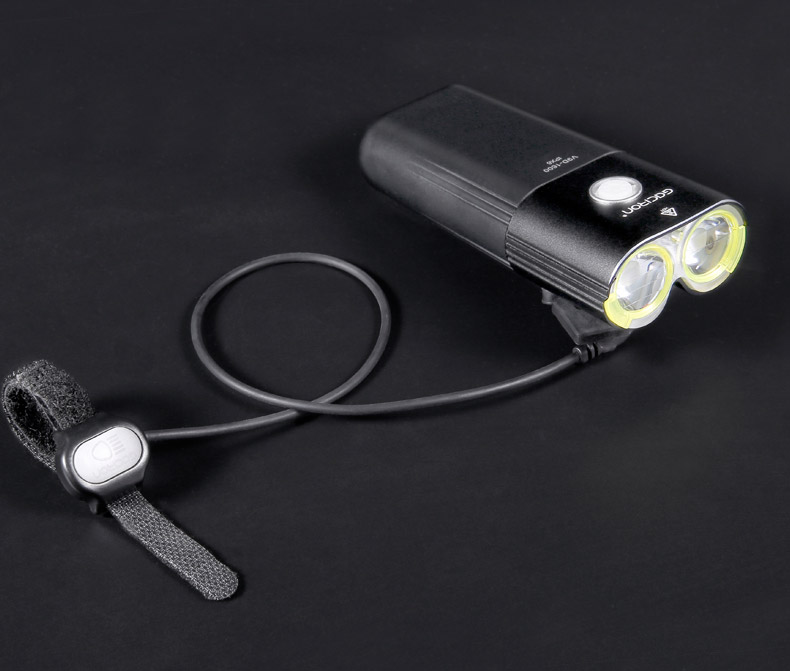

Gaciron 5000mAh 1600 lumens usb rechargeable battery mini bicycle front lights cycling flashlight

Features:

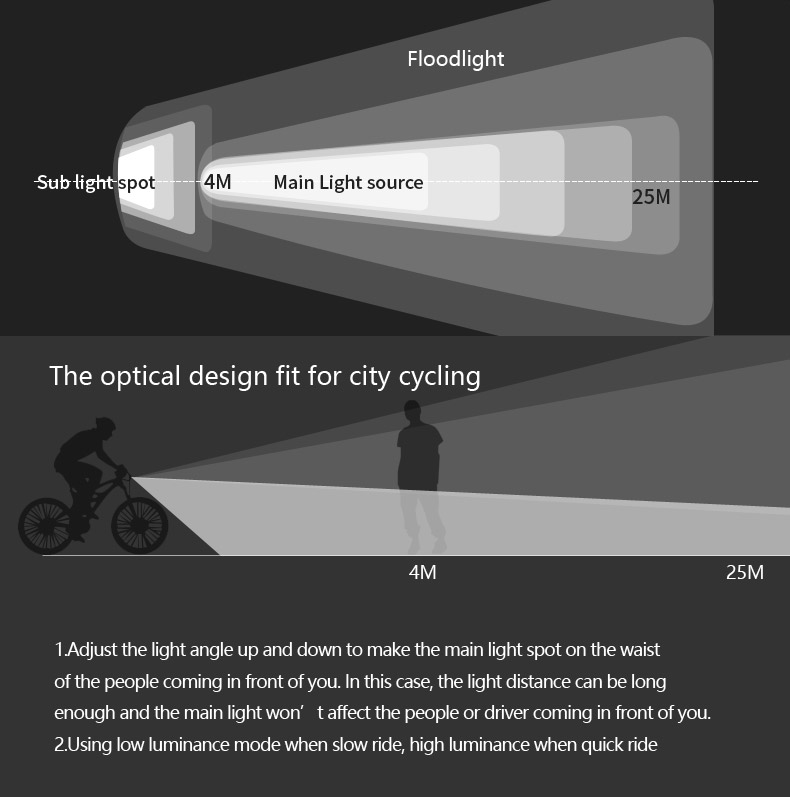

1. Wide floodlight about 125°.
2. USB rechargeable built-in battery.

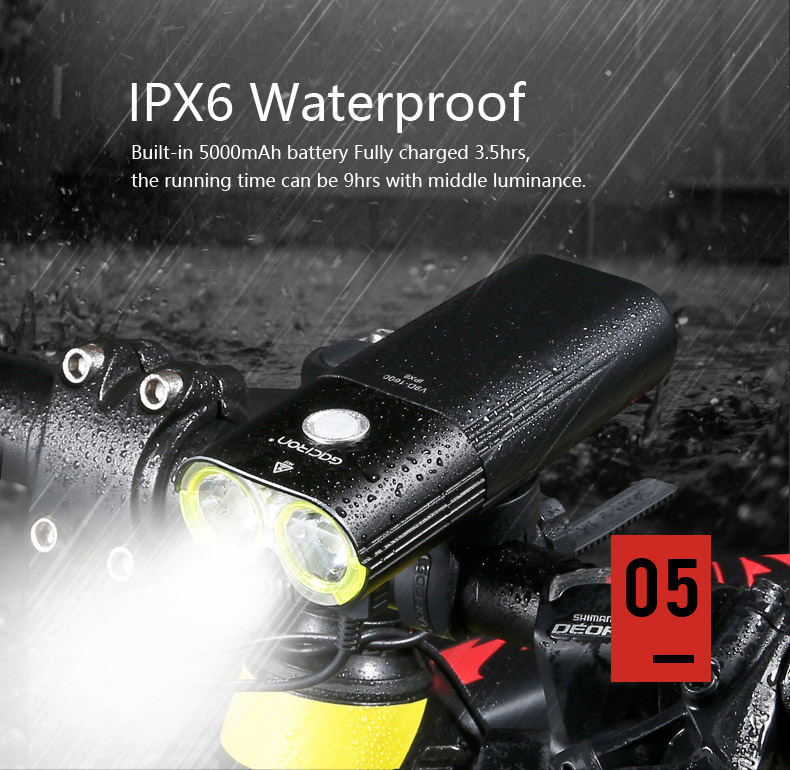

3. IPX6 waterproof

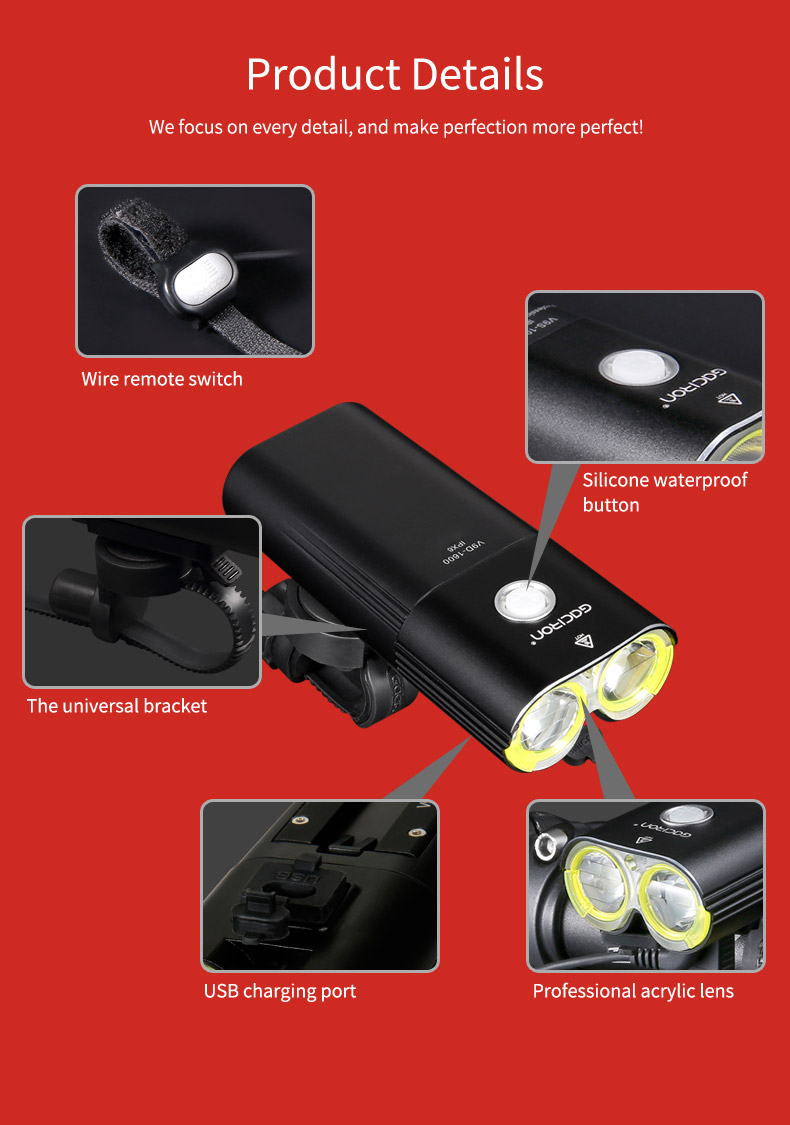

4. Silicone waterproof botton

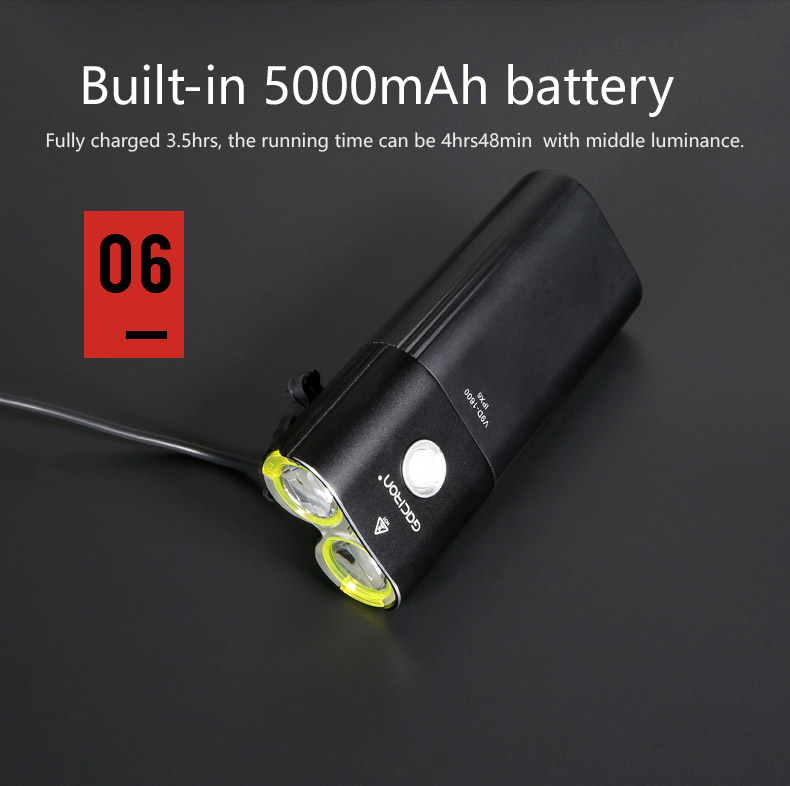

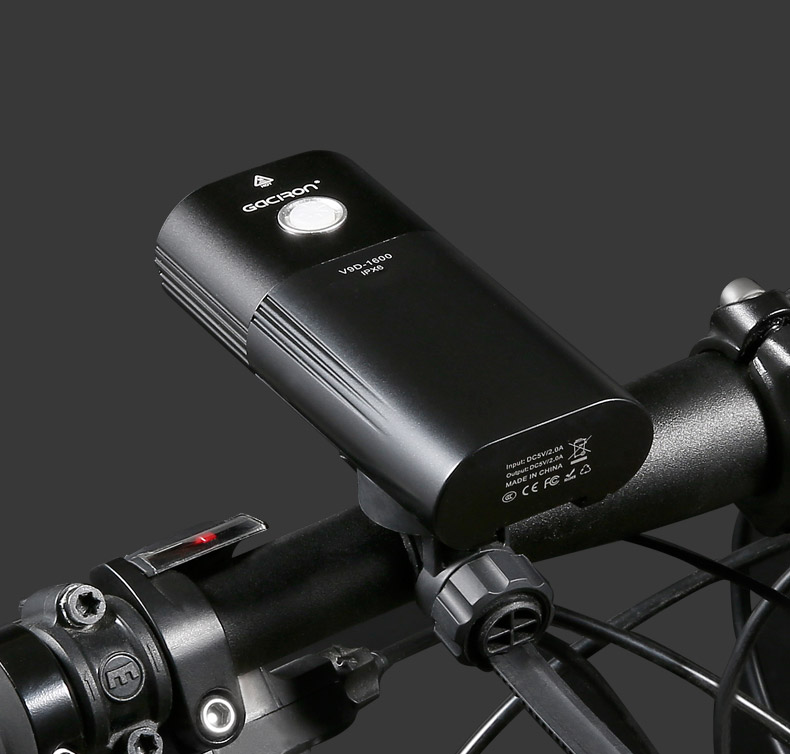

5. 5000mAh battery USB rechargable, handlebar clip

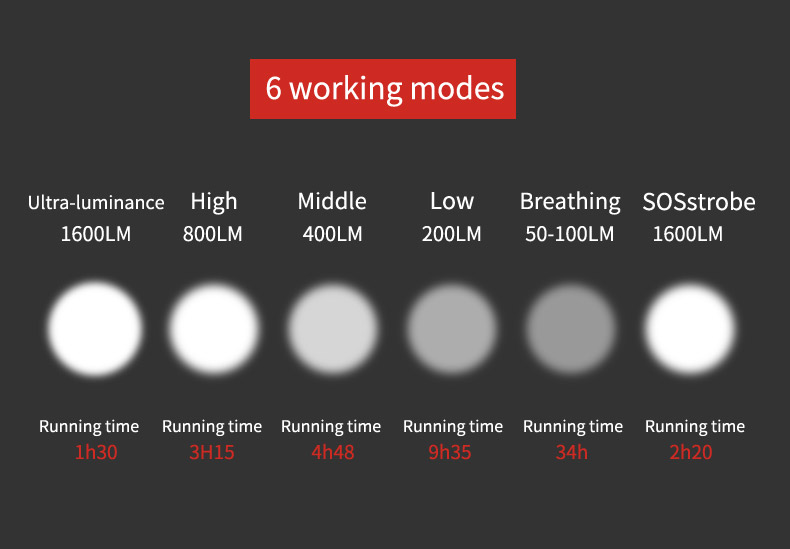

6. 5 flash mode

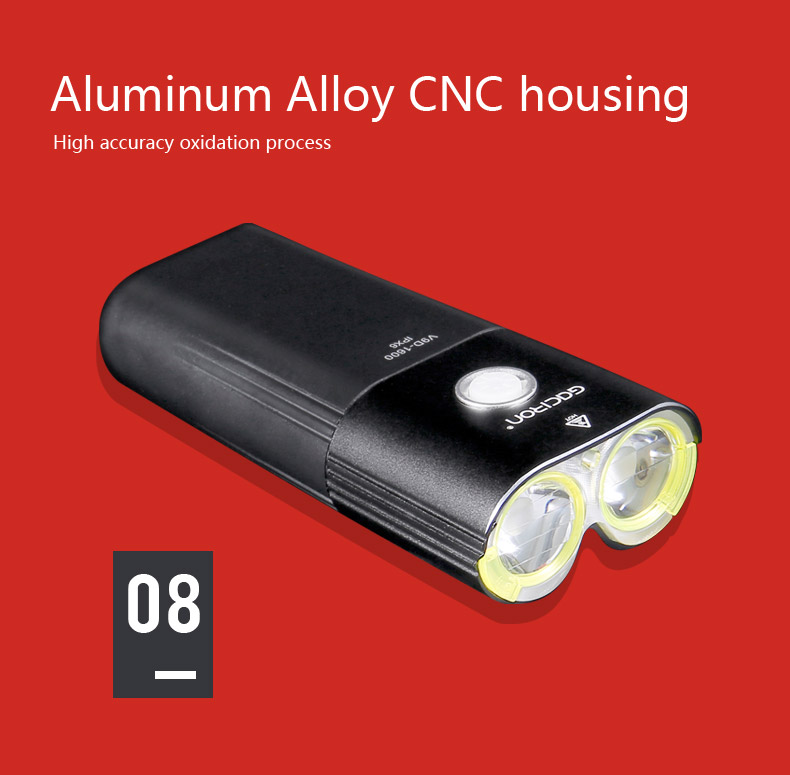

7. Aerospace aluminum alloy 6063 body.

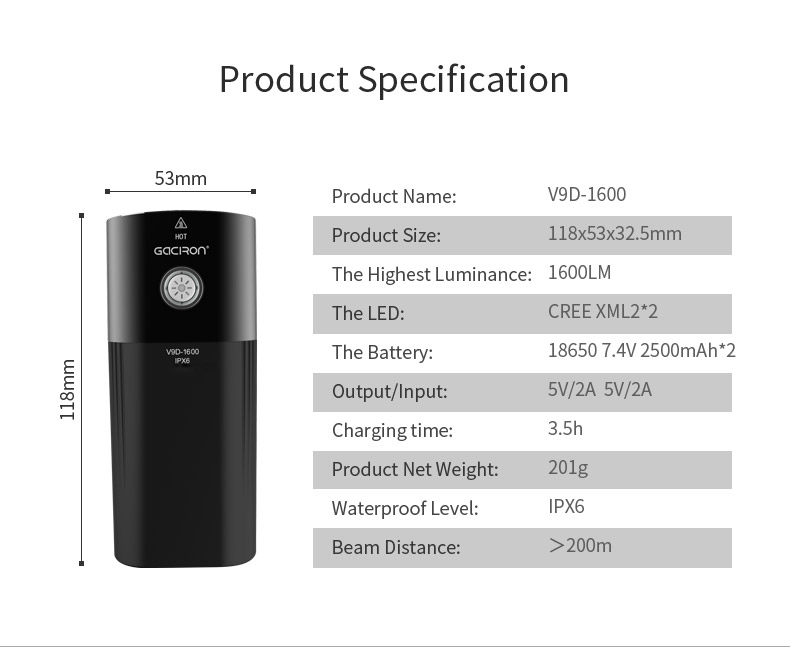

8. Size: 118mm * 53mm*32.5mm.

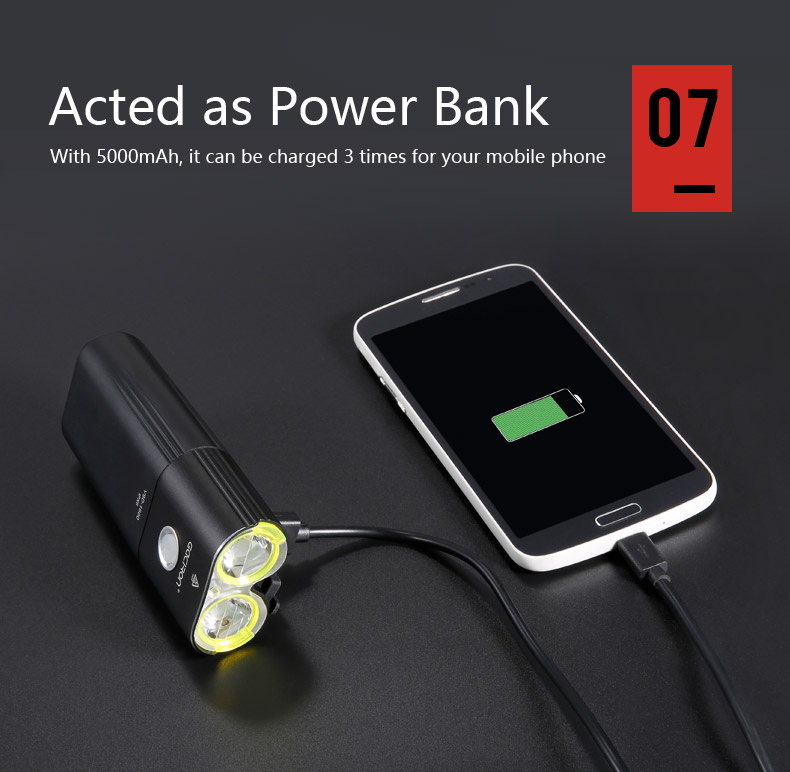

9. Can be acted as power bank.


Bicycle LightV9Dyingwen_02V9Dyingwen_03V9Dyingwen_04V9Dyingwen_05V9Dyingwen_06V9Dyingwen_07V9Dyingwen_08Bicycle LightV9Dyingwen_10V9Dyingwen_11V9Dyingwen_12V9Dyingwen_14V9Dyingwen_14-14V9Dyingwen_15V9Dyingwen_16V9Dyingwen_17V9Dyingwen_18

John Deere Service Advisor EDL V2 Diagnostic Kit

Support Languages: English, French, German, Italian, Portuguese, Russian, Spanish.

John Deere Service Advisor  Agriculture workshop service manual, repair manual, electrical wiring diagram, hydraulic diagram, diagnostic, assembly and disassembly engine, transmission.
John Deere AG Management Solutions, Attachments, Backhoes, Combines and Headers, Cotton Harvestings, Excavators, ForkLifts, Hay and Forages, MAte Hand Cut and Shredderses, Plantings and Seedings, Skid Steers, Sprayers, Sugar Cane Harvesters, Tillages, Tractors, Worksite Pro Attachments.
John Deere Service Advisor  CF (Construction and Forestry), workshop service manual, repair manual, diagnostic, electrical wiring diagram, hydraulic diagram John Deere.
John Deere Service Advisor  CCE (Commercial and Consumer Equipment)dealer technical assistance, diagnostics, connection readings, calibrations, interactive tests, specification, tools, assemble and disassemble presented all models John Deere Construction Equipment and some models Hitachi, Euclid, Bell and Timberjack.

JOHN DEERE diagnostic adapter for construction equipment, agriculture, engines John Deere.
